ECVV 32" x 40" Pneumatic Heat Press Machine Pull Out Worktable 220V Single Phase
USD 2999.00 2999.00

Free Shipping Delivery

Lead Time: 1 business days MOQ: 1

Quantity

Description

ECVV 32” x 40” large format pneumatic heat press machine provides a big surface to create your own custom use. The heat transfer machine is a multipurpose large format manual heat transfer press intended for the imprinting of a vast range of different materials.

Ideal applications the ECVV large format pneumatic heat press machine has performed flawlessly include: large fabrics, multiple piece goods, banners, floor mats, carpets, mousepads, plastics, sheet metal, tile & other ceramics and much more. The ECVV strongly supports sublimation transfer processes, as well as digitally produced transfers, hot and cold peel plastisol transfers, and laminating processes.


  • Main Heating plate size: 32” × 40” (80 × 100cm)
  • Voltage & Power: 220v, 60Hz, single phase, 32A; 7kW
  • Temperature Range: 0 - 250℃ (0 - 482℉)
  • Operation: Pull out workable
  • Pressure: adjustable, max. pressure: 900 Lbs
  • Display: LED digital displays
  • Available Material: Large fabrics, multiple piece goods, banners, floor mats, carpets, mouse pads, plastics, sheet metal, tile & other ceramics and much more.
  • Materials and other preparation: sublimation ink & sublimation transfer paper. Air compressor which should meet the machine requirements. See technical parameters for details

*Note: This machine needs to work with the specific sublimation transfer ink, sublimation transfer paper and printer.


Features

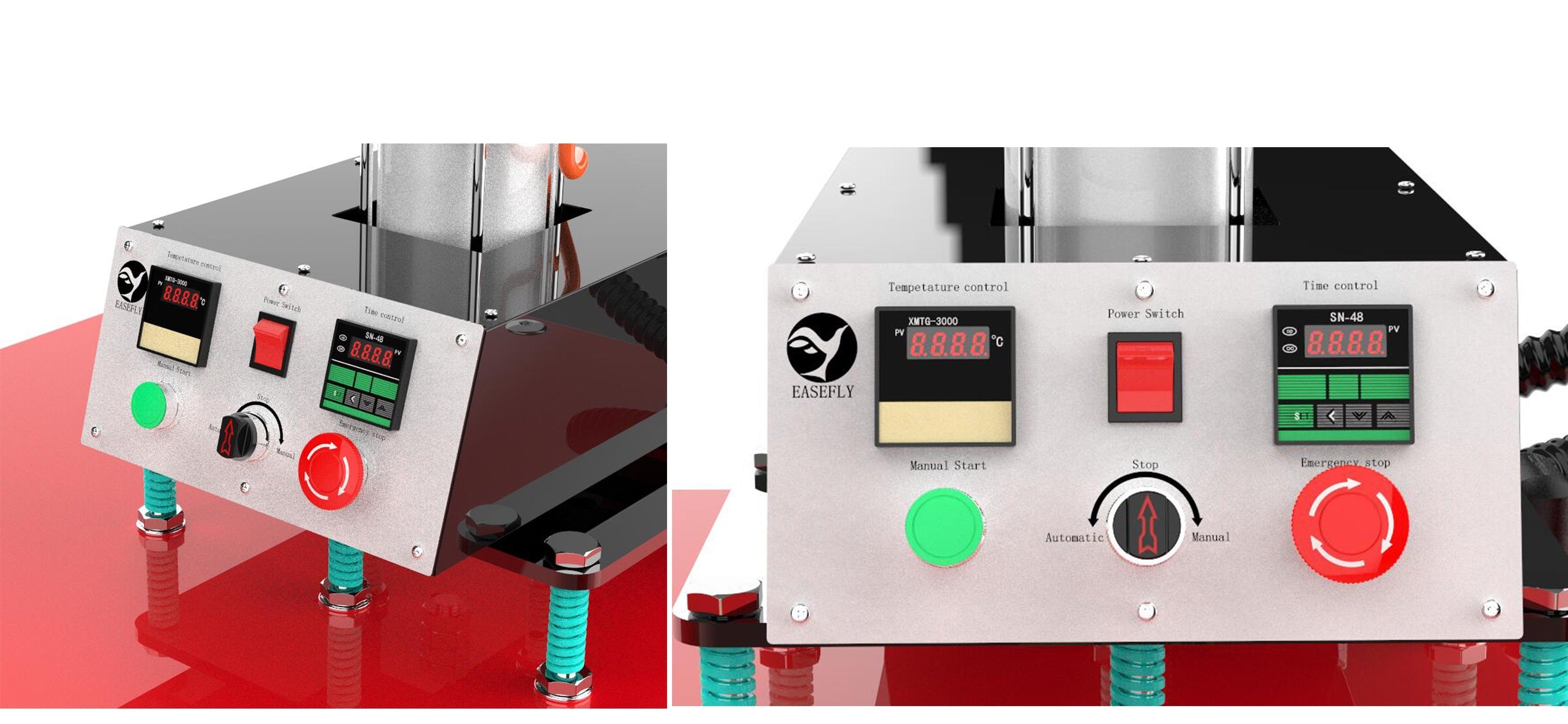

  • This machine offers temperature and time setting with two digital displays, allowing the user to have accurate temperature and exposure for a precise heat transfer and to help reduce user error.
  • Fully digital temperature control 32°F - 485°F range.
  • Temperature readout can show °C or °F.
  • Solid steel welded framework.
  • Ultra-thick heater block assembly, good quality sponge pad and silicone pad, making perfect transferring effort.
  • Records number of pressing cycles done with end-of-cycle alarms.
  • Heavy-duty locking casters for easy mobility and solid foundation support.
  • Two modes can be selected: Automatic and Manual.

Technical Details


Packing List:

  • 1 X Fully-Assembled 32" × 40" Pneumatic Machine With Controller
  • 1 X Removable Silicone Pad And Cotton Pad
  • 1 X Fixed Holder
  • 1 X Operating Manual



Click here:

Manual
