Short Description:
Working size: 35.4" x 24" (900 mm × 600 mm)
Laser Tube: RECI 90 W CO2 glass laser tube
Certification: FDA certified
Power Supply: AC 110 V ± 10%, 60 Hz
Working Platform: Motorized up and down working table, suitable for MAX 250mm high object.

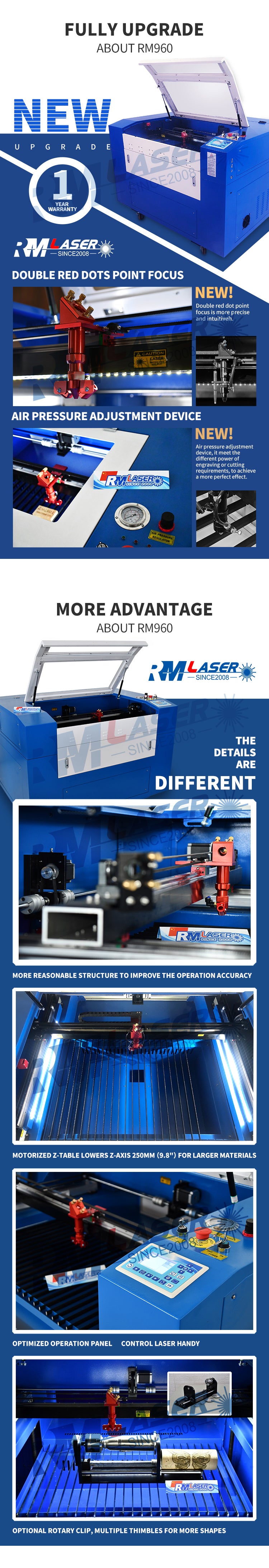

Focusing Type: Double red dot focusing
Suitable for Material: Acrylic / Wood Board ( Rare Hard Wood ) / Density Board (High Density Board) / Double Color Plate / PVC / Leather / Cloth / Paper
Others: With 3000W Water Chiller. Built-in Air Pressure adjustment help you get best effect during cutting and engraving
Product Description:

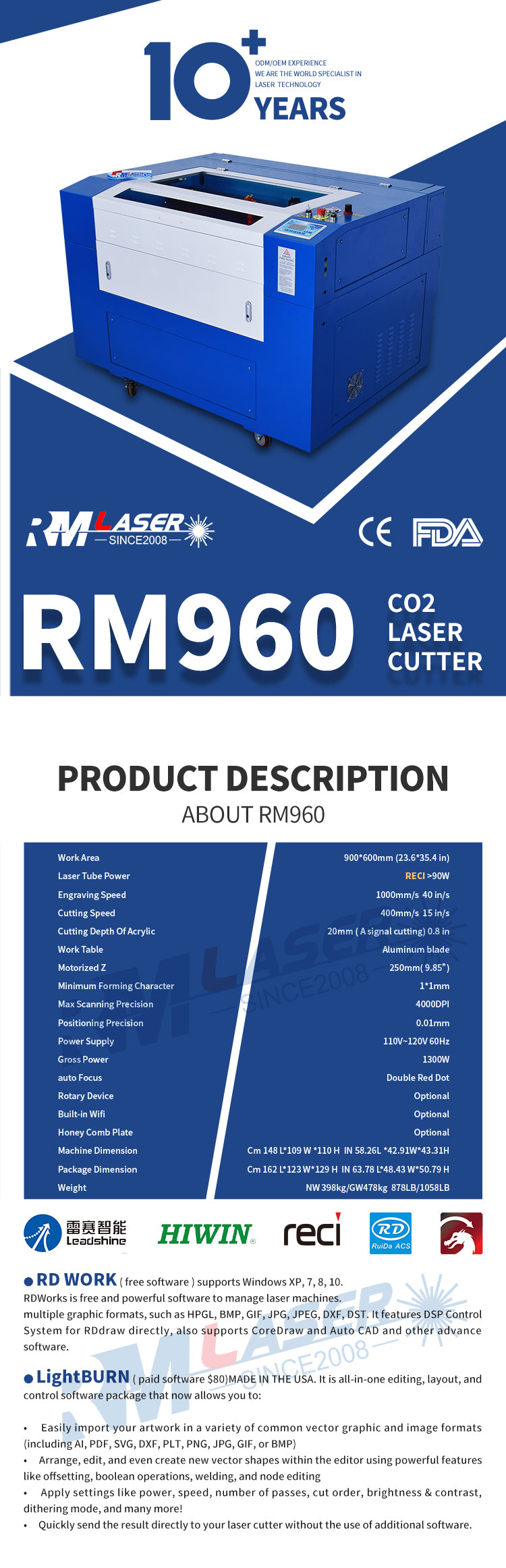

Technical Details:
| Model | COL960 |
| Work area | 900*600mm (35.4*23.6 in) |
| Laser tube power | RECI 90W |
| Engraving speed | 1000mm/s 40 in/s |
| Cutting speed | 400mm/s 15 in/s |
| Cutting depth of acrylic | 20mm (A signal cutting) 0.8 in |
| Work table | Aluminum blade |
| Motorized Z | 250mm( 9.85”) |
| Minimum forming character | 1*1mm |
| Max Scanning Precision | 4000DPI |
| Positioning precision | 0.01mm |
| Power supply | AC 110 V ± 10%, 60 Hz |
| Gross Power | 1300W |
| Auto Focus | Double Red Dot |
| Water Chiller | Standard 3000W |
| Rotary Device | Optional |
| Built-in Wifi | Optional |
| Honey Comb Plate | Optional |
| Air compressor | Optional |
| Machine Dimension (L x W x H) | 58.26" x 42.91" x 43.31" |
| Packing Size (L x W x H) | 63.78" x 48.43" x 50.79" |
| Weight | NW 569LB / GW 811LB NW 258KG / GW368KG |
